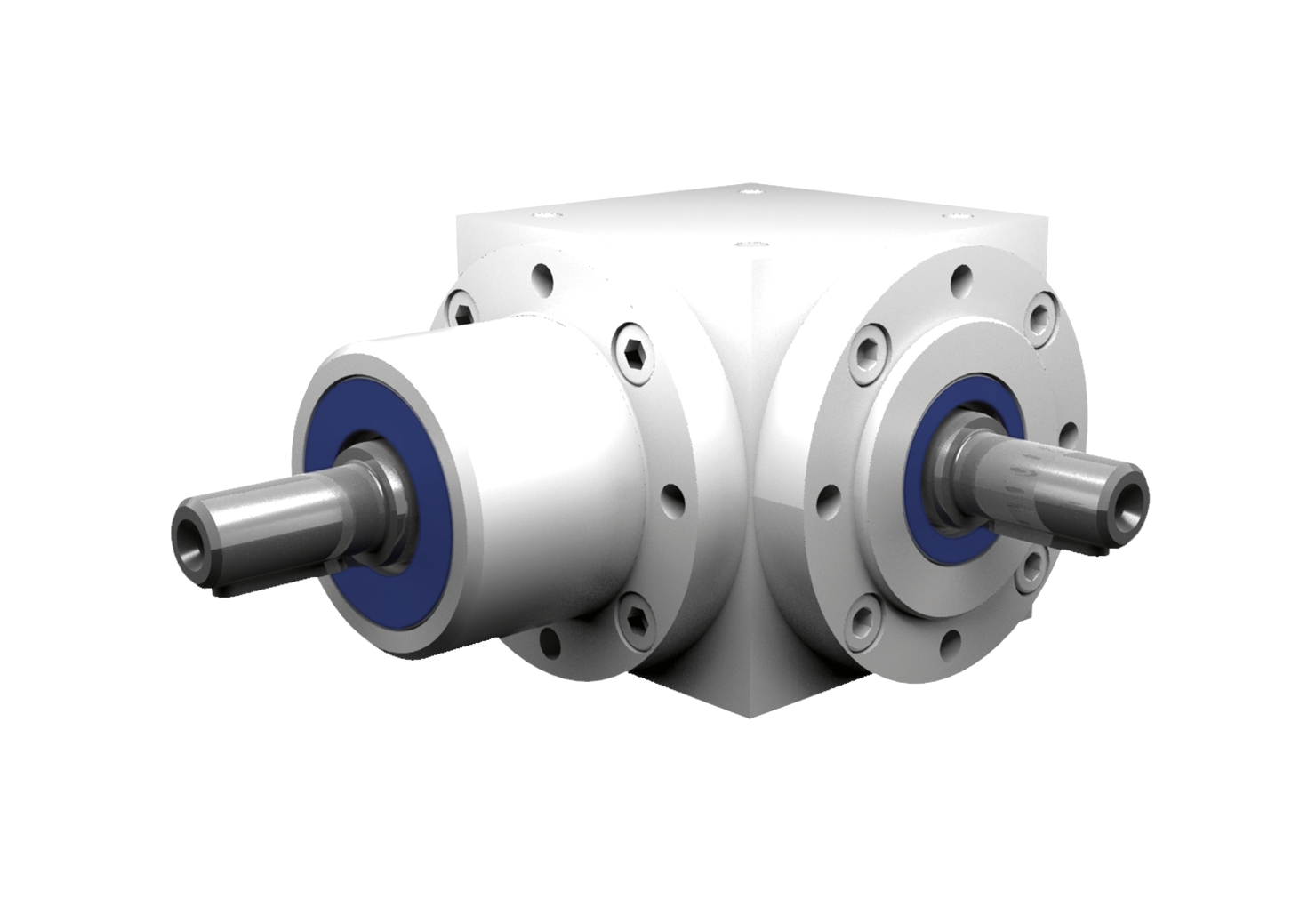

Type V – Standard bevel gearboxes
FEATURES
Gear ratios: i = 1:1 up to 6:1
Maximum output torque: 5400 Nm
9 gearbox sizes with edge lengths of 065 up to 350 mm
Low-backlash design: less than 6 angular minutes possible
Housing made of grey cast iron or steel
|
![](img/12-2-2563 14-21-38.jpg)

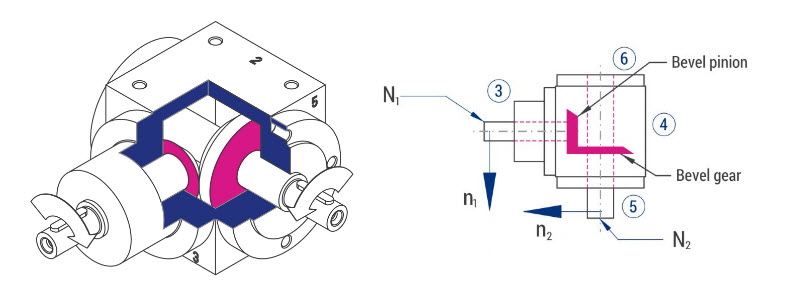

The example shows the construction type C0
![](img/12-2-2563 14-23-58.jpg)

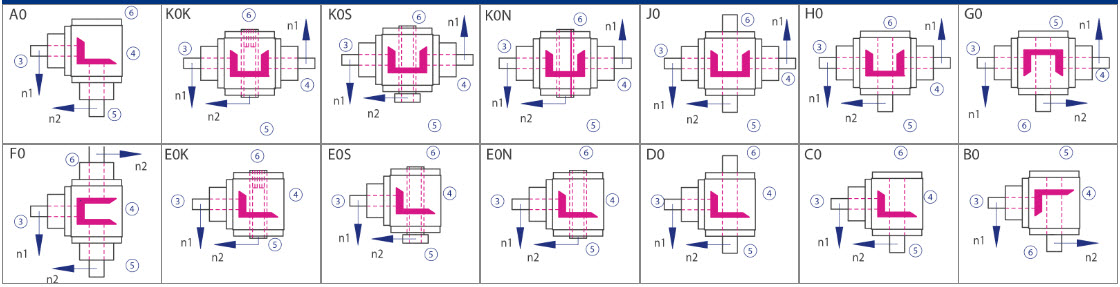

TYPE OVERVIEW
